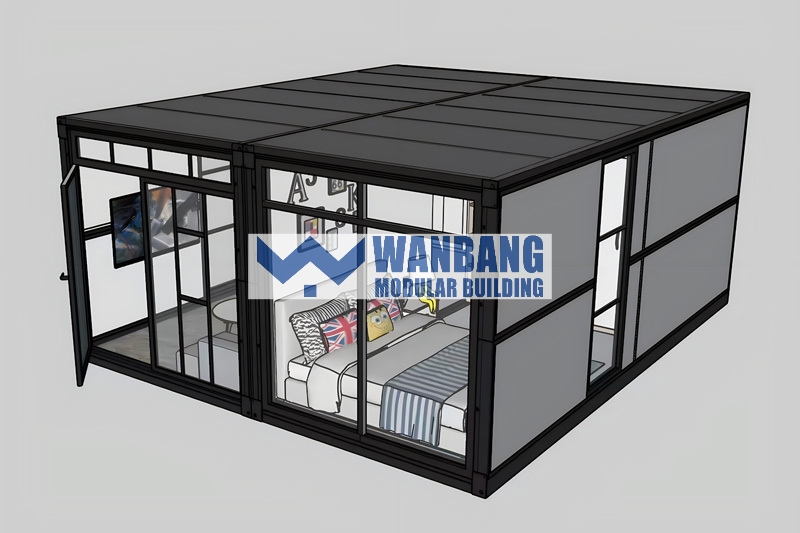

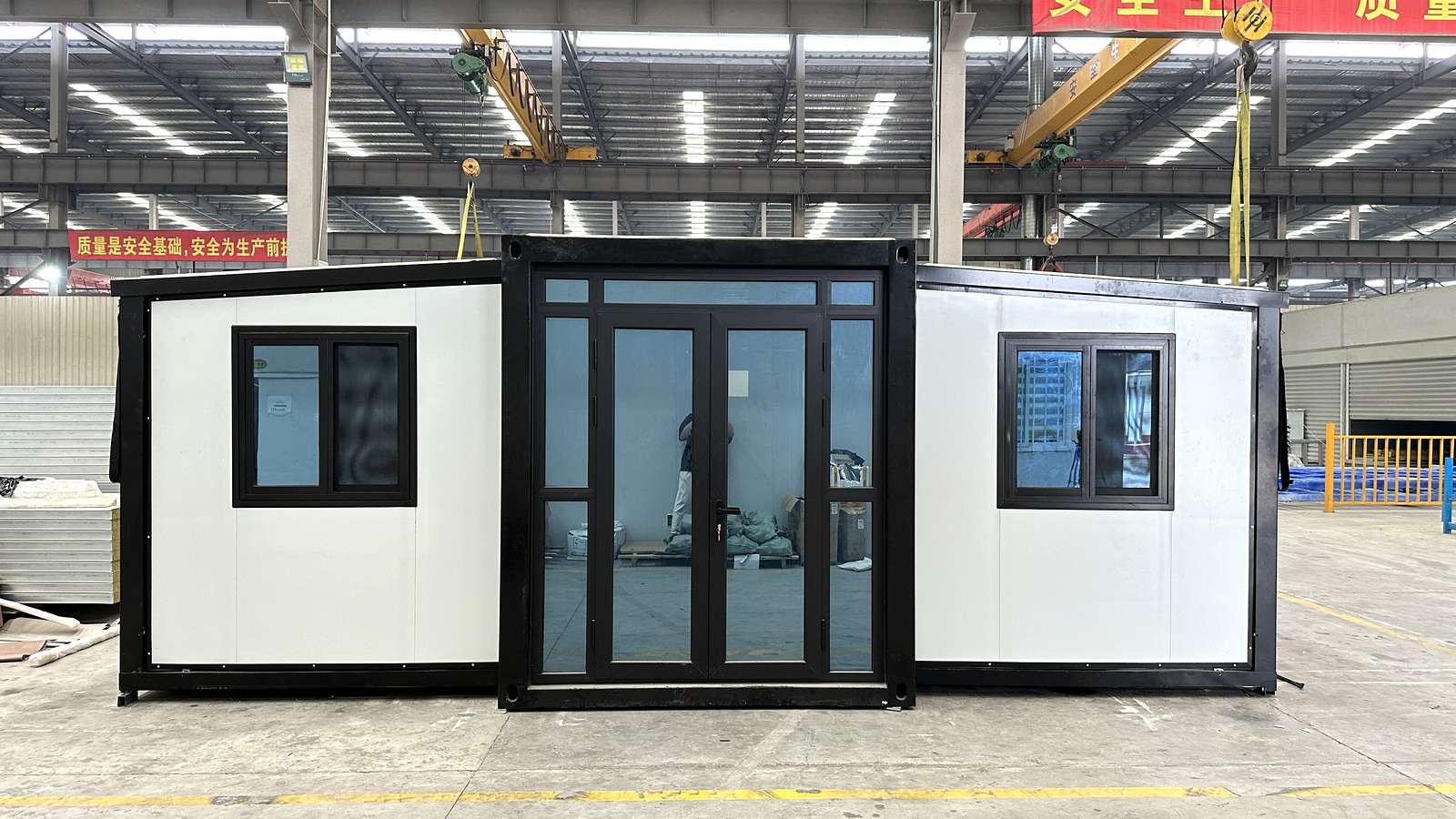

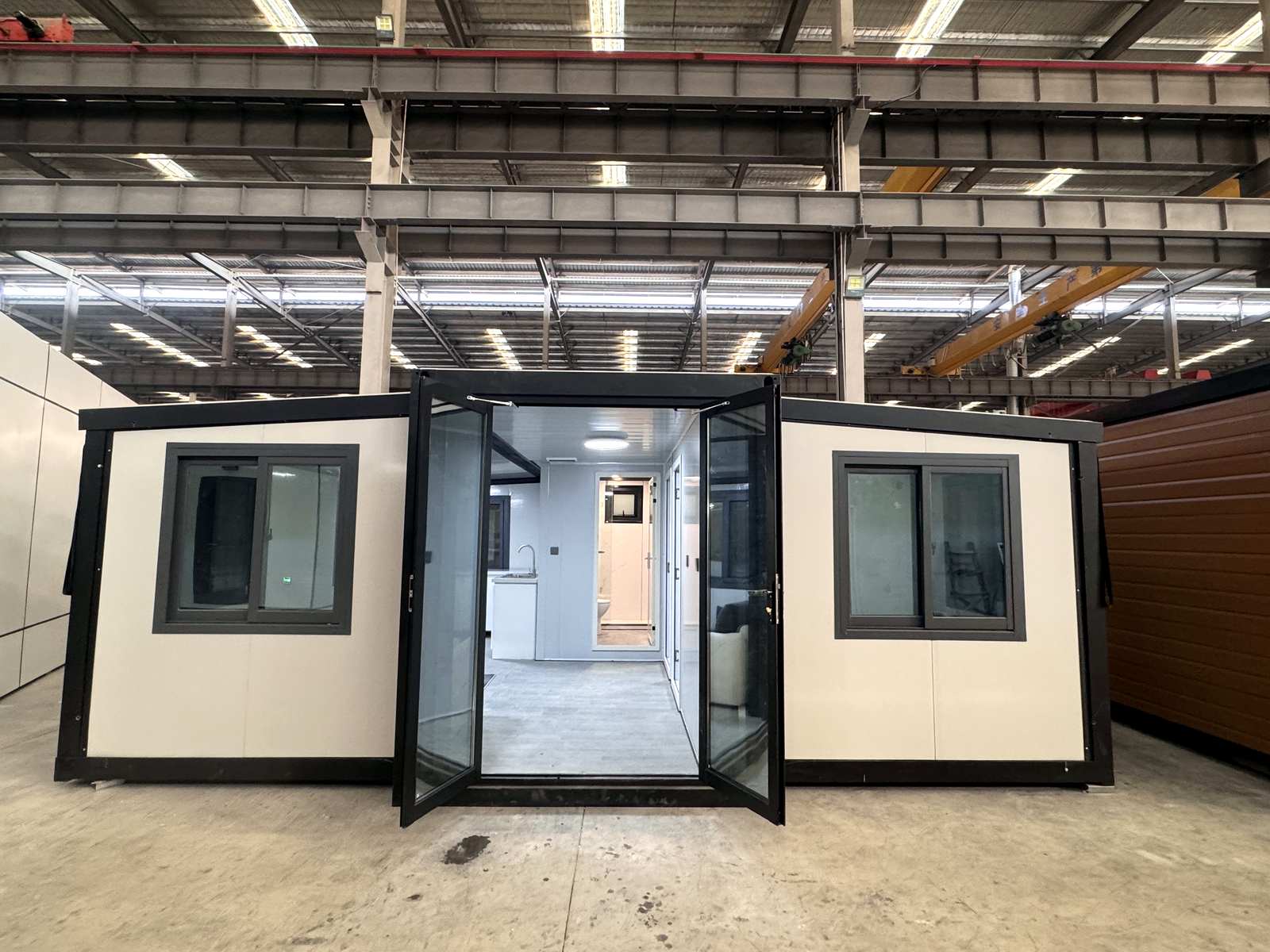

2 bedrooms mobile foldable container house is an eco-friendly and economic modular house, built with light steel structure as the skeleton,full use of the strength of color steel sandwich panels and roof panels. It is assembled by any combination of the standard modules through bolts connection, can be assembled and disassembled conveniently and quickly.
Artikel-Nr :
C-020Bestellung (MOQ) :
1 setZahlung :
50% deposite,50% before shipmentProduktherkunft :
Guangdong provinceFarbe :
whiteVerschiffungshafen :
Nansha portVorlaufzeit :
10-15 daysGewicht :
1500KG2 bedrooms mobile foldable container house

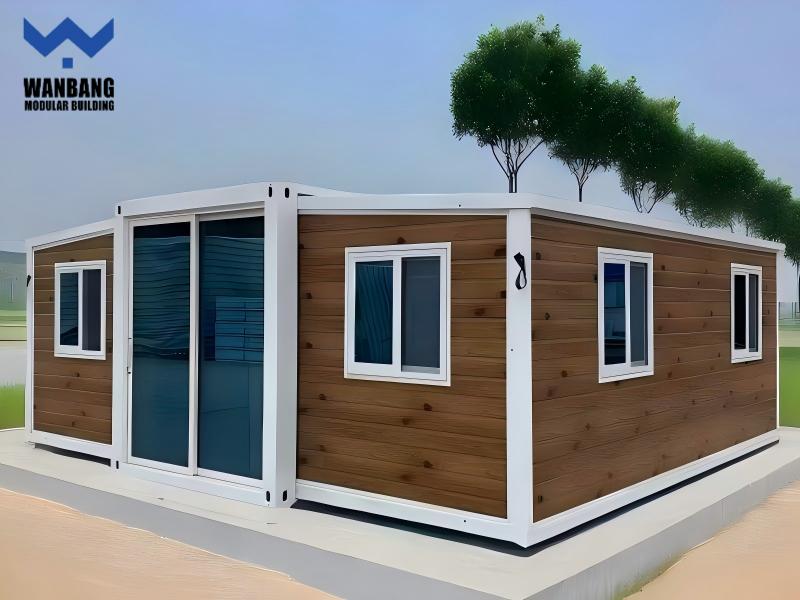

The 2 bedrooms mobile foldable container house,our container camp ensures durability and long-lasting performance, allowing you to embark on countless adventures without worry.

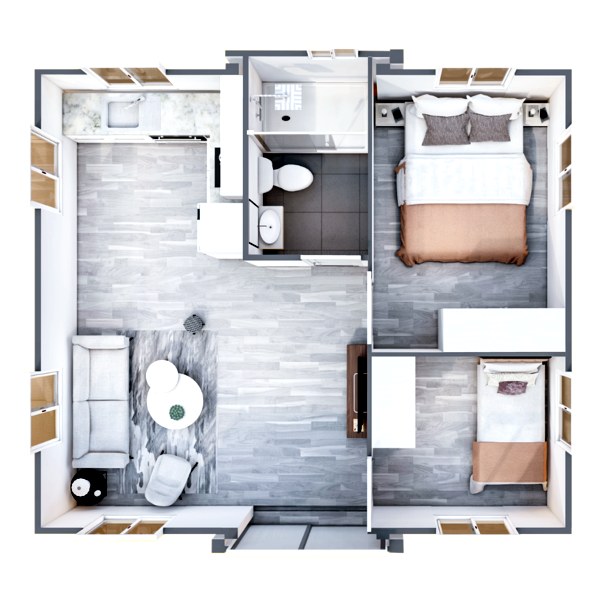

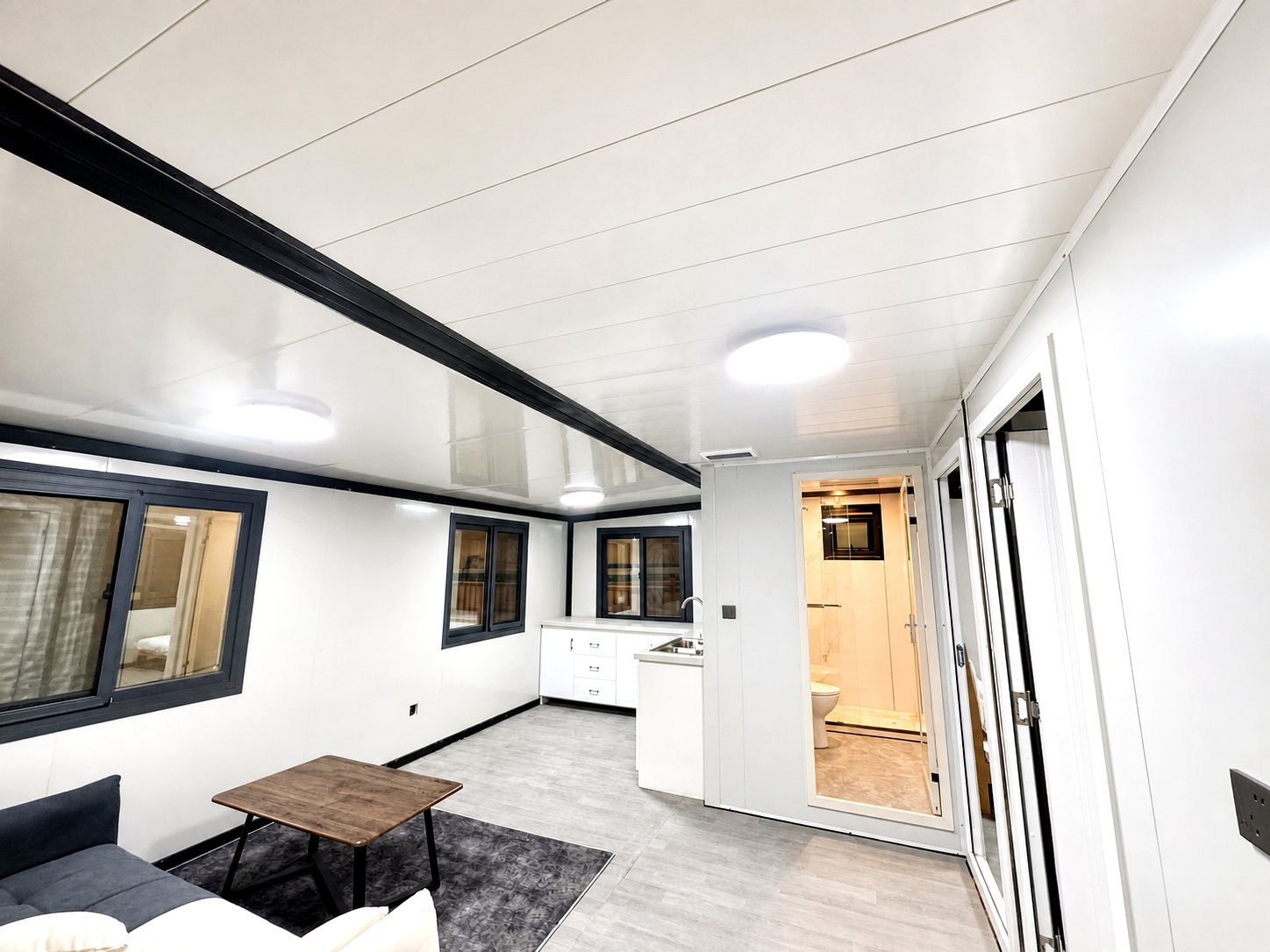

The intelligently planned layout maximizes the use of space, offering two comfortable bedrooms that serve as cozy sanctuaries for rest and relaxation. Enjoy the luxury of privacy while indulging in the comfort and tranquility that this container house effortlessly provides.
Not only does this mobile container house feature impeccable design, but it also prioritizes convenience and versatility. With its foldable structure, it can be easily transported and assembled in different locations, making it an ideal choice for those who value freedom and flexibility.
Description
20ft expandable container house materials list
| SPECIFICATION OF EXPANDABLE CONTAINER HOUSE 20FEET | |||||||||

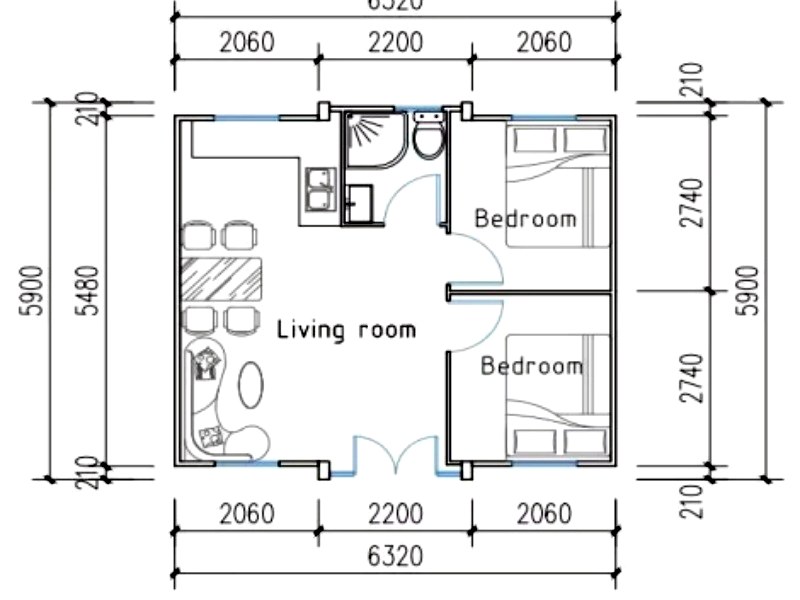

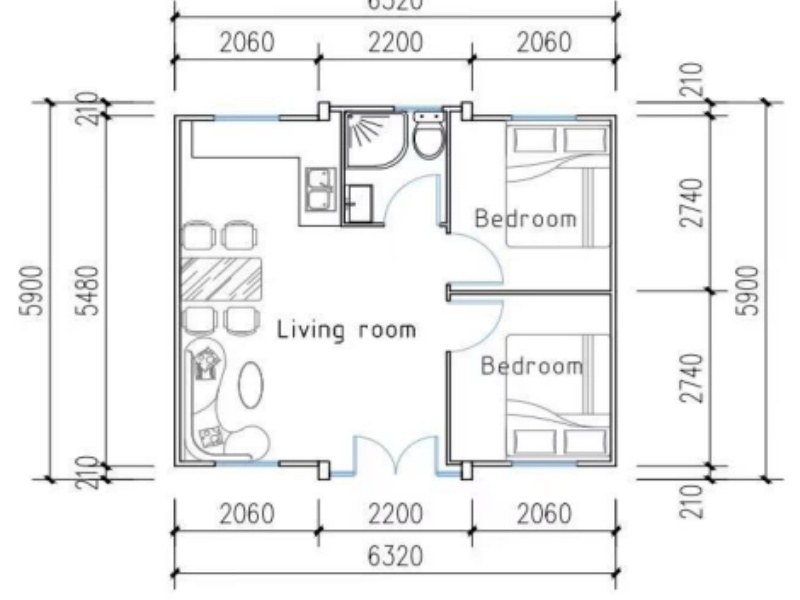

| Dimension | Loading Size（L*W*h） | 5900*2200*2480mm | |||||||
| Expanded Size（L*W*H） | 5900mm*6300mm*2480mm | ||||||||
| Index | Thermal insulation | 入=0.048W/m·K | Wind resistance | 0.60kN/m² | |||||
| Sound insulation | ≥30dB | Fire performance | A | ||||||
| Waterproof | organized drainage, with a precipitation rate of 16mm/min and no leakage. | Seismic performance | 8 | ||||||
| Floor Load | 2.0kN/m² | Roof Snow load | 0.9kN/W² | ||||||
| Structure | Main Frame | Suspension head: 210*150*160, fully galvanized. Main beam 1 on the ground: 80mm*100mm square steel, galvanized beam 2.5mm thick; Main beam 2 on the ground: 180m special-shaped C-shaped steel, galvanized beam 2.5mm thick; Ground secondary beam: specification 60*40*1.8mm thick*9 galvanized square tubes or C-shaped steel; Column: specification 210*150mm, galvanized 2.5mm thick; Roof main beam 1: 80mm*100mm square steel, galvanized 2.5mm thick; Roof main beam 2: 140m special-shaped C-shaped steel, galvanized beam 2.0mm thick; Roof secondary beams 40*40*1.5mm thick*7 galvanized square tubes or U-shaped steel, 20*40*1.2 square tubes*2 pieces |
|||||||
| Side Wings Frame | P80*1.5mm special pipe/P65*1.5mm special pipe/L-shaped special galvanized steel plate, thickness 2.5mm; 50*70*1.5mm rectangular tube/L25*25*1.0 angle steel; 2.5mm galvanized folded irregular beam; 2.5mm galvanized folded water guide trough. |
||||||||
| Surface Treatment | Electrostatic spraying plastic powder paint ≥80 Hm | ||||||||
| Wall pannels | Flame Retardant Benzene Board/EPS/ROCKWOOL | The thickness of the 75mm 950 type EPS composite purification board, with a bulk density of 14kg/m³ flame retardant, is attached with PE film. The color options include white/gray and others. The inside and outside are pure flat or (optional metal embossed decorative panel). | |||||||
| Roof | Roofing | 50mm thick 950 type EPS composite purification board, with a bulk density of 14kg/m³ flame retardant. Structural adhesive + butyl tape, first waterproofing. Outer paste single-color steel tile, thickness 0.35mm, second waterproofing. |
|||||||
| Ceiling | 190 strip ceiling panel, thickness 0.32mm. Or alternative models. | ||||||||
| Floor | Structural Panels | 20mm Cement board + multi-layer wood glue waterproof board. | |||||||
| Plastic Flooring | Artificially pasted PVC floor leather, thickness 1.6mm, hot melt caulking. | ||||||||
| Door | Entrance Door | Broken bridge aluminum bi-fold/KFC aluminum alloy bi-fold/aluminum-magnesium alloy swing / aluminum - magnesium alloy push-pull, W1900mm×H2280mm,tempered glass. (Choose one) | |||||||
| Bedroom Door | Steel set door, W840mm×H2040mm, national standard fire door lock. (High-end eco-door and other alternative options) | ||||||||
| Toilet Door | Titanium-magnesium alloy single swing door, size ≥ W750mm×H2000mm, tempered glass. | ||||||||
| Dry-wet Separation Door | Titanium-magnesium alloy sliding door, size ≥ W1360mm×H2130mm, tempered glass. | ||||||||
| Window | Standard Window、Toilet Window | Broken bridge aluminum casement window/plastic steel casement window/aluminum-magnesium alloy track sliding window, size: W930mm×h930mm (optional one, quantity can be customized) | |||||||
| Bathroom | Flooring Treatment | Marble water tray with stainless steel floor drain | |||||||
| Wall Treatment | UV board with waterproofing | ||||||||
| Sanitary Ware | Sanitary ware: toilet, shower, wash basin, mirror cabinet, plumbing fittings | ||||||||
| Electricity | Lamp | LED round/strip ceiling light 15W, quantity as per drawing. | |||||||
| Socket | Optional European standard, American standard, Austrian standard and national standard | ||||||||
| Switch | Single key switch × 3. | ||||||||
| Distribution Box | Concealed electrical box × 1 | ||||||||
| Air Switch | Optional European standard, American standard, Austrian standard and national standard | ||||||||
| CEE Industrial Plug | 220V，50Hz，3P32A×1 | ||||||||
| Wiring | Entrance line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | ||||||||
| Water Proof | D-type rubber strips for each movable joint; butyl waterproof tape | ||||||||

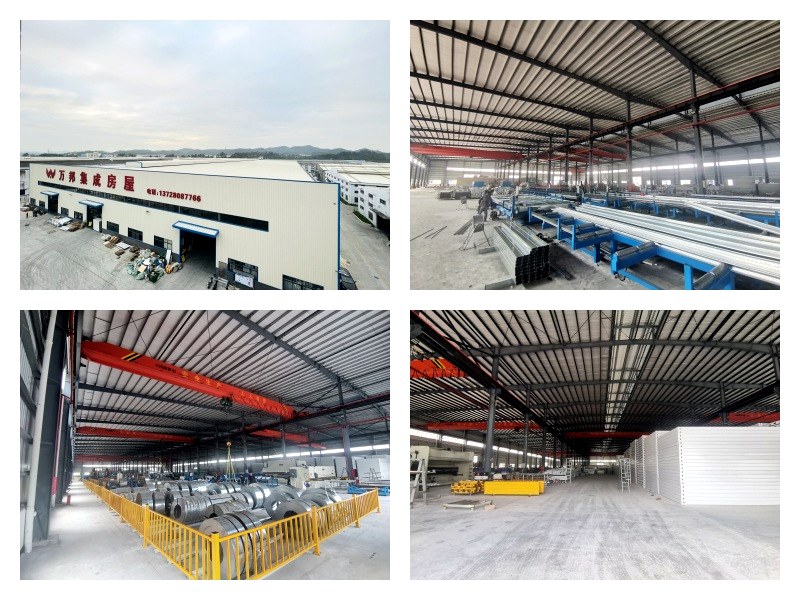

Factory Introduction
Guangdong Wanbang Modular Building factory was established on December 11, 2018,we have provided customers with high-quality services for 6 years.
Our company mainly provides: construction projects container house , steel structure projects house.etc
FAQ
1.What's the MOQ of expandable container house for one shipment?
At least 1 unit.
2.what's the production time for one bulk shipment?
Around 7-15 days after receive the deposit.
3.If you can customized the design when we have layout?
Yes,we can customized the products depands on your layout.
4.What's the payment method?
Our payment method usually T/T 50% deposit, and the balance 50% paid before shipment.
